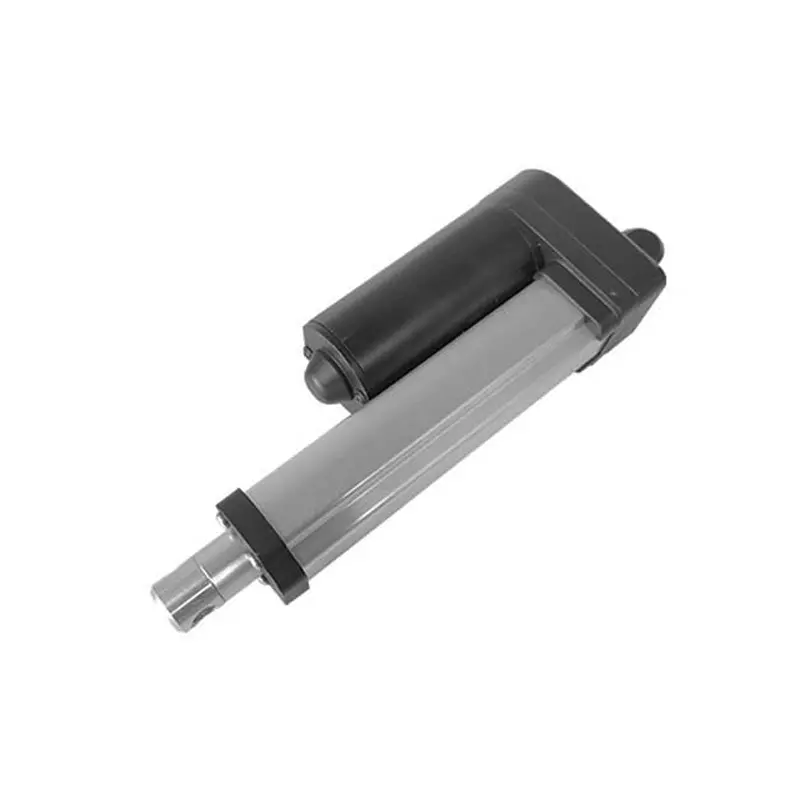

GRA-D16
MOQ: 100 Pieces
Delivery time: 7 Day
Input invotage: 12v/24v
Max load: 3000N
Max speed at no load: 17.5mm/s
Max stroke: 600MM
IP rate: IP54
Option: Hall sensor
Product Details
|
Stroke S (MM)
|
30-300
|
301-500
|
501-700
|
701-1000
|
|

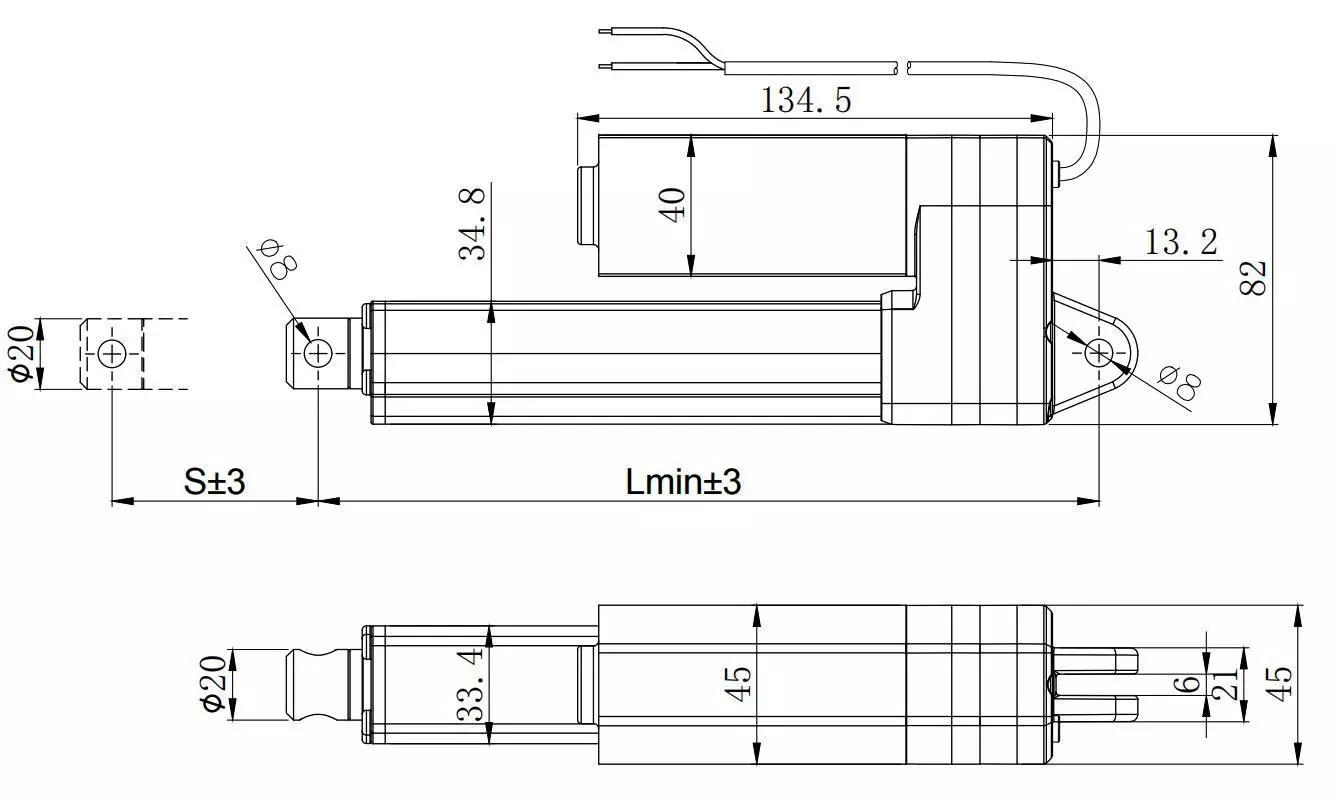

Size Lmin（MM）
|
S+120
|
S+130
|
S+150
|
S+180
|
Technical Specifications
| Code | Max Load (N) |
Speed （mm/s） ±10% |
Current（A） | ||||
| No load | Full load | ||||||
| fully loaded | fully loaded | 12V | 24V | 12V | 24V | ||
| A | 3000 | 5 | 3 | 1.4 | 0.8 | 6.5 | 3.5 |
| B | 2000 | 8 | 4.5 | 1.4 | 0.8 | 6.5 | 3.5 |
| C | 1500 | 12 | 6.5 | 1.3 | 0.7 | 6.2 | 3.2 |
| D | 1000 | 17.5 | 10.3 | 1.3 | 0.7 | 6.2 | 3.2 |
