GRA-D15
MOQ: 100 Pieces
Delivery time: 7 Day
Input invotage: 12v/24v
Max load: 12000N
Max speed at no load: 55.0mm/s
Max stroke: 1000MM
IP rate: IP66
Option: Hall sensor, Limit switch signal output, Potentiometer
Product Details
| Itinerary (S) |
30-100
|
101-300
|
301-600
|
601-1000
|

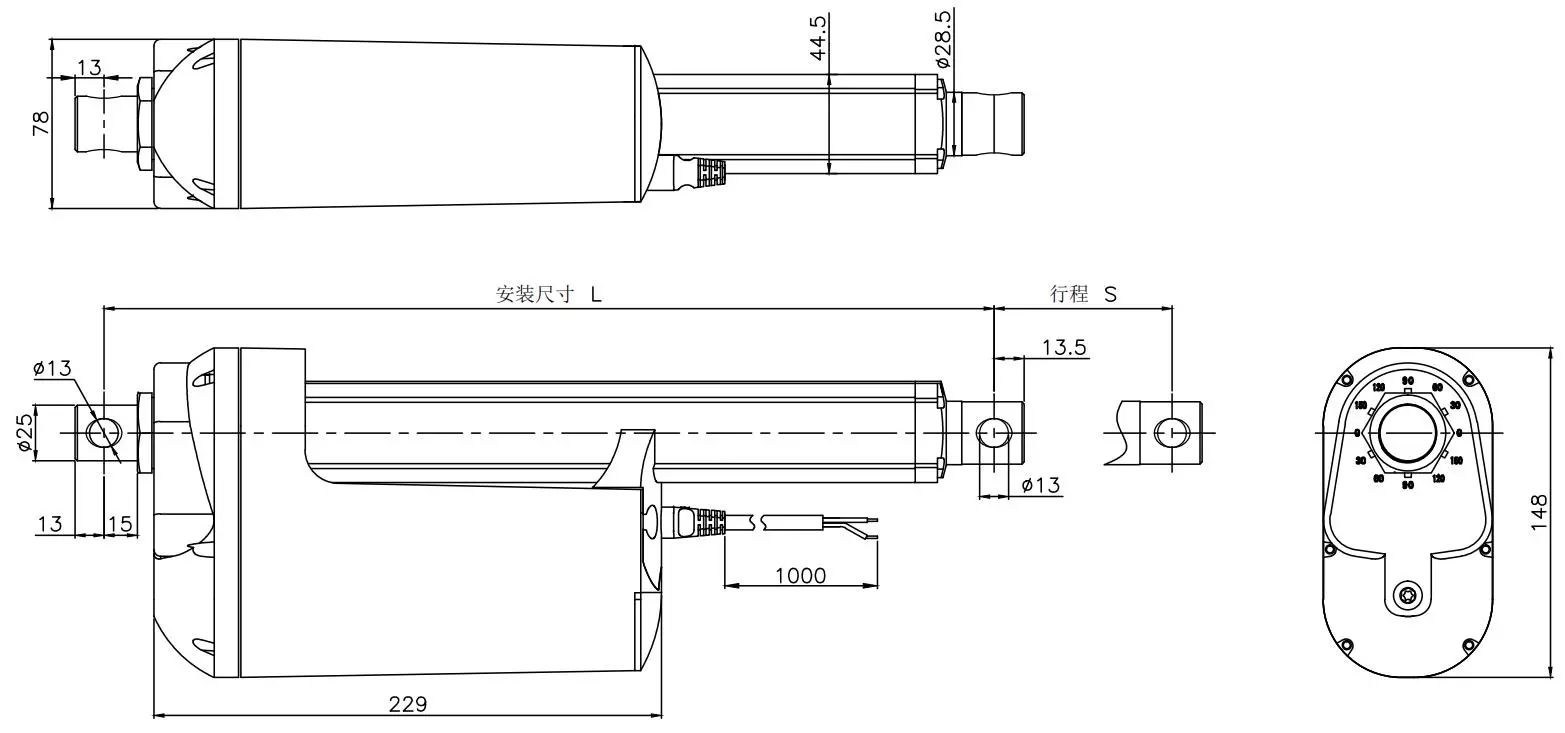

| Length (L) |
315
|
S+200
|
S+250
|
S+300
|
Products Description
| Code | Rated Load | Self-Locking Force | Gear ratio | Speed | No load | Full load | |||
| MM/S | |||||||||
| (N) | (N) | No load | Full load | 12V | 24V | 12V | 24V | ||
| A | 12000 | 15000 | 40:1 | 6.5 | 4.5 | 4.0 | 2.4 | 20.0 | 10.5 |
| B | 11000 | 12000 | 30:1 | 8.5 | 6 | 4.0 | 2.4 | 20.0 | 10.5 |
| C | 7500 | 9000 | 20:1 | 13 | 9 | 4.0 | 2.4 | 20.0 | 10.5 |
| D | 10000 | 12000 | 40:1 | 13 | 7 | 4.0 | 2.4 | 20.0 | 10.5 |
| E | 7000 | 8000 | 30:1 | 17 | 9.5 | 4.0 | 2.4 | 20.0 | 10.5 |
| F | 5000 | 6000 | 20:1 | 25 | 14 | 4.0 | 2.4 | 20.0 | 10.5 |
| G | 6500 | 8000 | 40:1 | 20 | 11 | 4.0 | 2.4 | 20.0 | 10.5 |
| H | 4500 | 5500 | 30:1 | 25 | 13 | 4.0 | 2.4 | 20.0 | 10.5 |
| I | 3200 | 4000 | 20:1 | 38 | 24 | 4.0 | 2.4 | 20.0 | 10.5 |
| J | 1500 | 2000 | 20:1 | 55 | 42 | 4.0 | 2.4 | 20.0 | 10.5 |

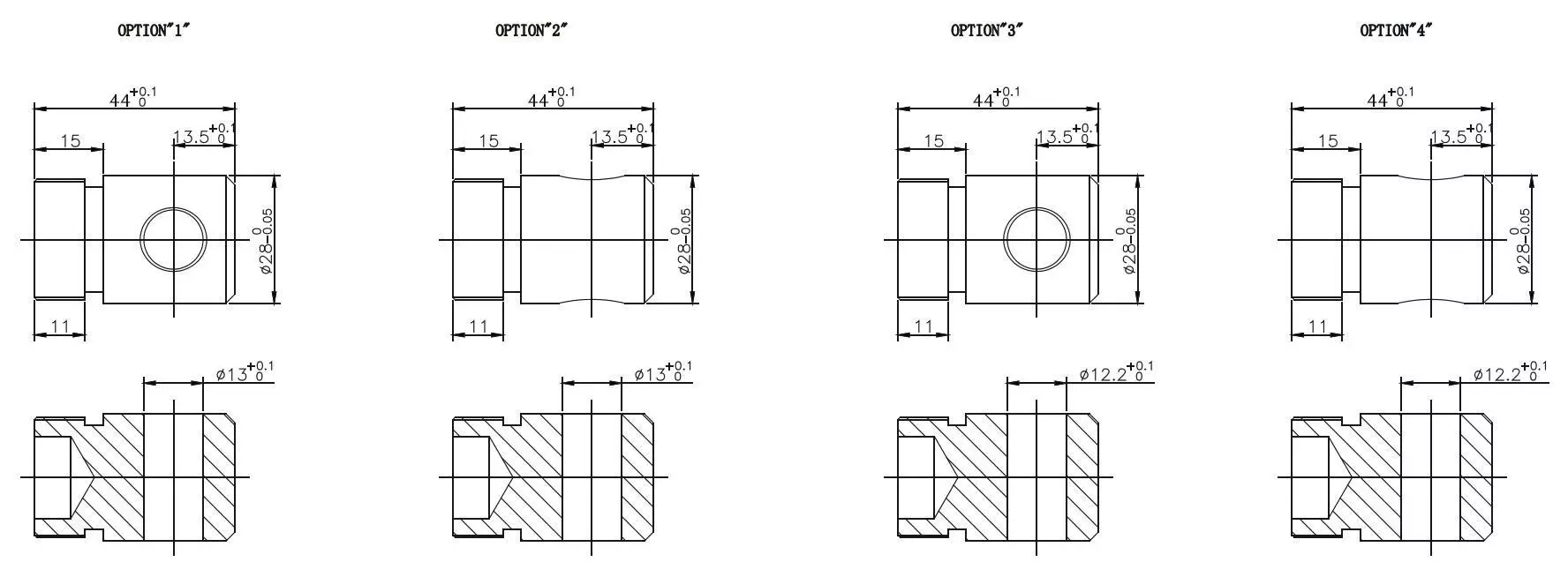

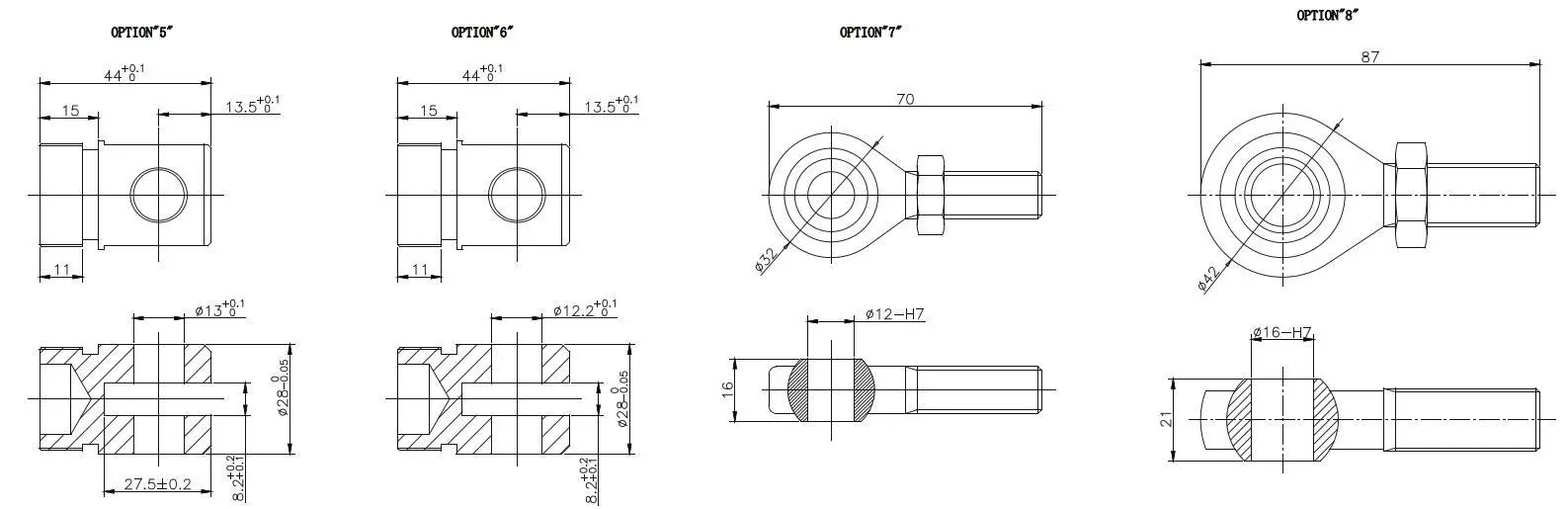

Front-End Link Header Options

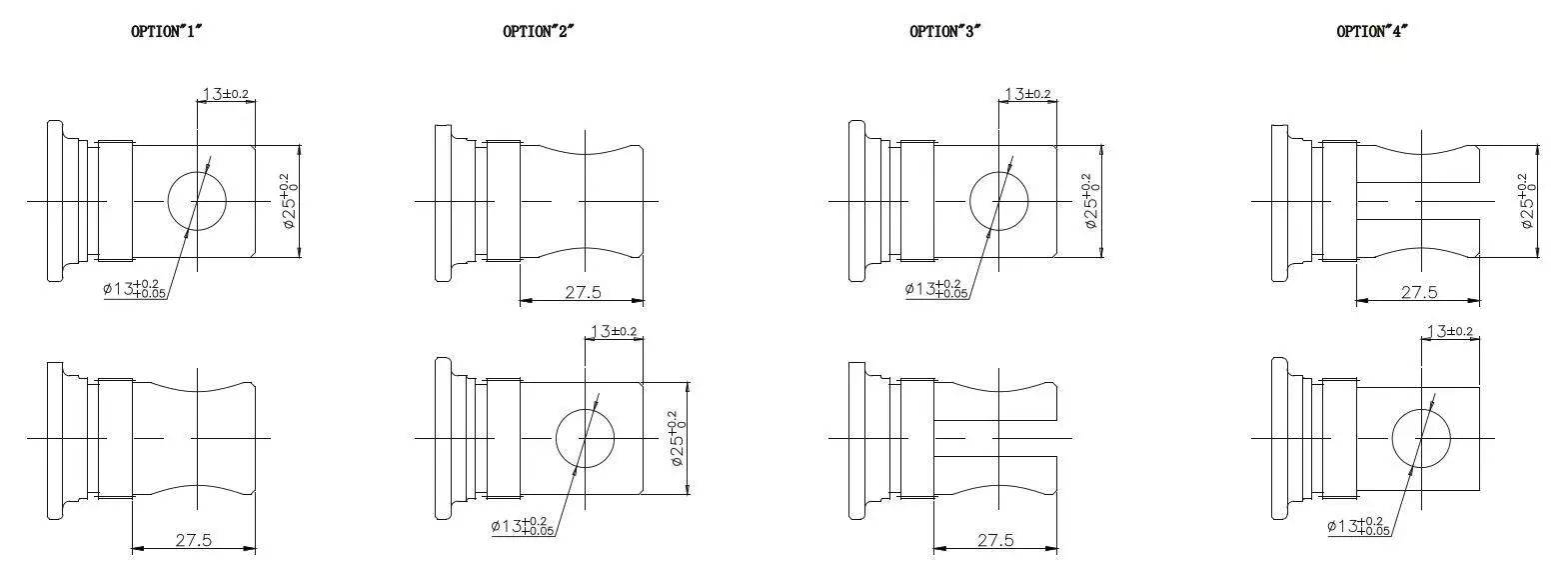

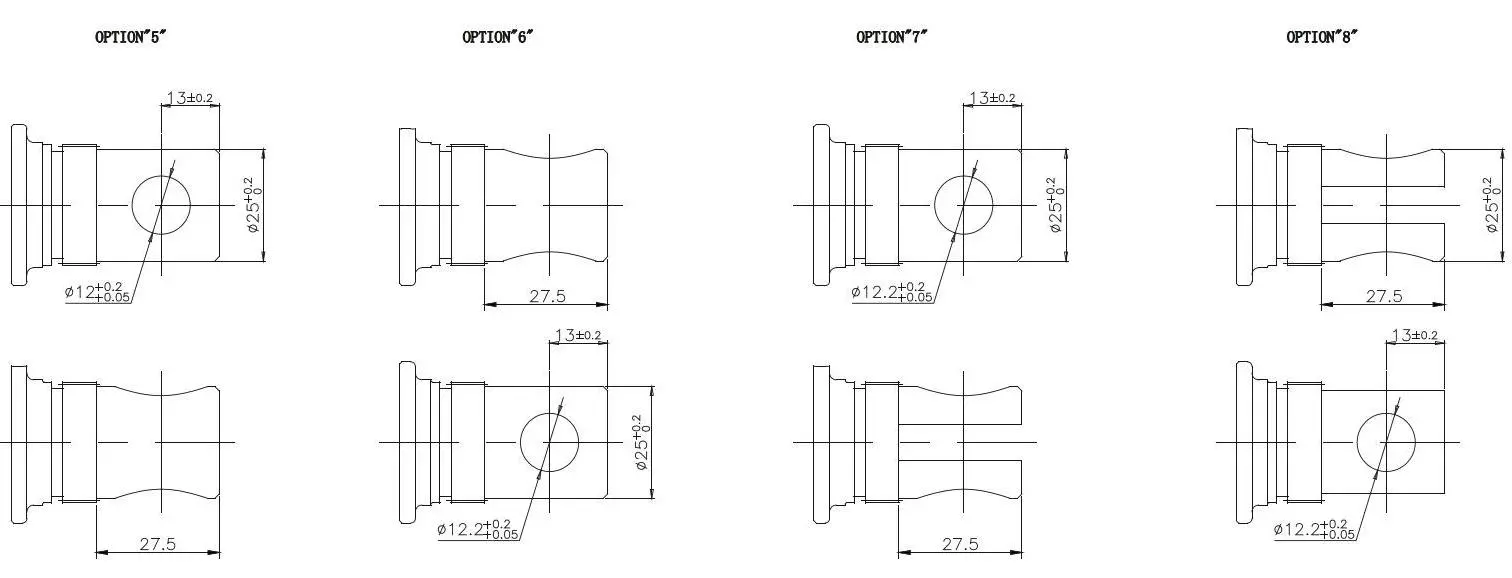

End Connector Options
