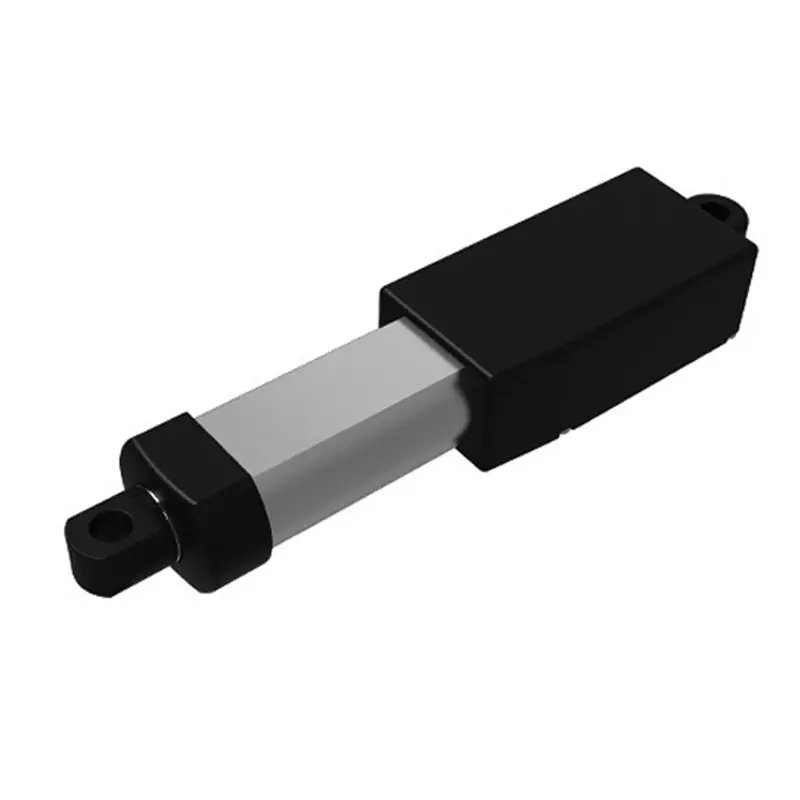

GRA-L12
MOQ: 100 Pieces
Delivery time: 7 Day
Input invotage: 12v/24v
Max load: 90N
Max speed at no load: 20.0mm/s
Max stroke: 200MM
IP rate: IP65
Product Details
| Itinerary(S) |
10-100
|
101-200
|

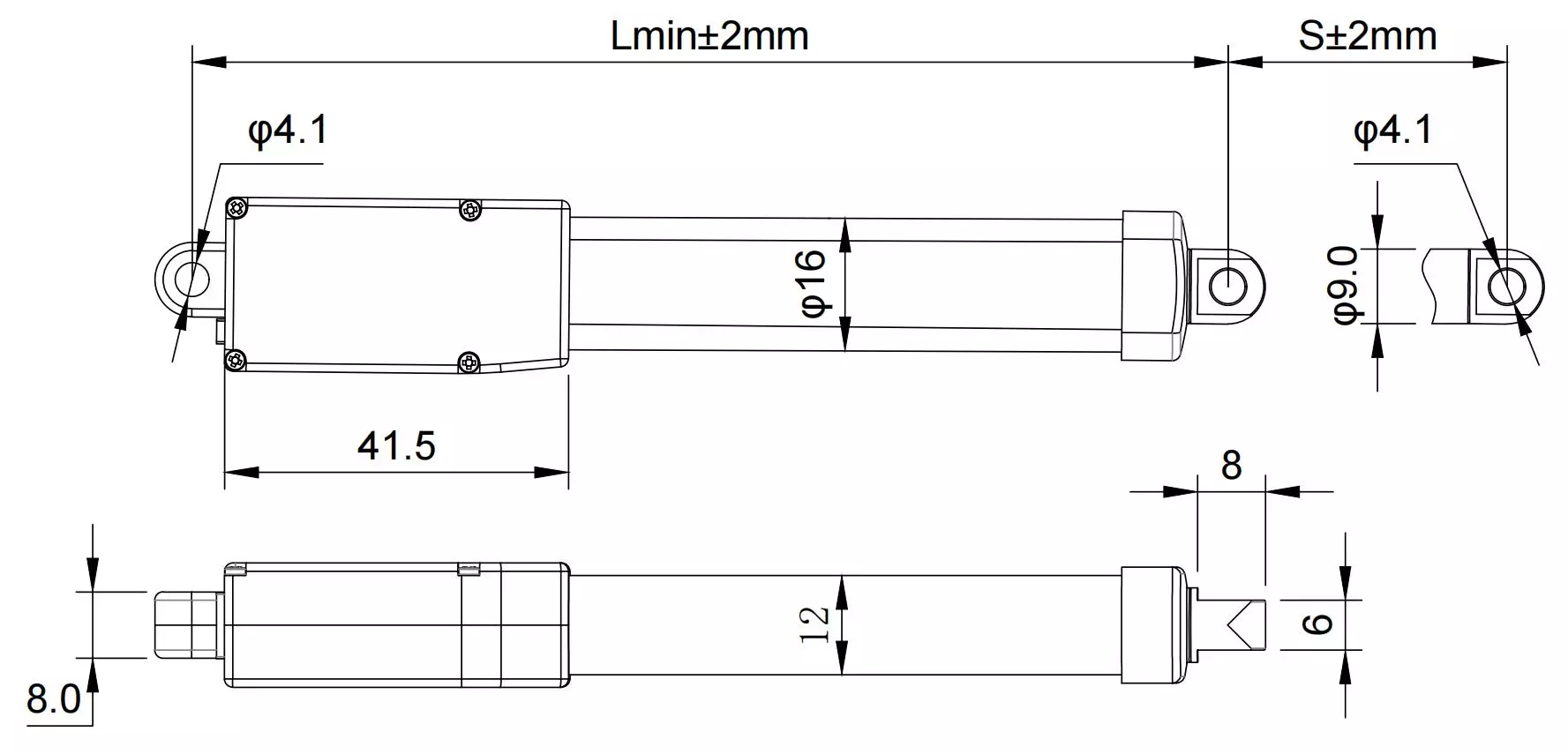

| Minimum Size (Lmin) |
S+56
|
S+66
|
Relevant Parameters
| Code | Rated Load (N) |
Speed （mm/s） ±10% |
Electric current （A） | ||||
| 12V | 24V | ||||||
| No load | No load | No load | No load | No load | No load | ||
| A | 20 | 20 | 15 | 0.05 | 0.4 | 0.01 | 0.2 |
| B | 90 | 4.5 | 3 | 0.03 | 0.3 | 0.01 | 0.15 |
