GRA-D5
MOQ: 100 Pieces
Delivery time: 7 Day
Input invotage: 12v/24v/36v/48v
Max load: 2000N
Max speed at no load: 27.0mm/s
Max stroke: 600MM
IP rate: IP54
Option: Hall sensor, Stainless steel inner tube
Product Details
| Travel Distance S (mm) |
30-300
|
301-500
|
501-600
|

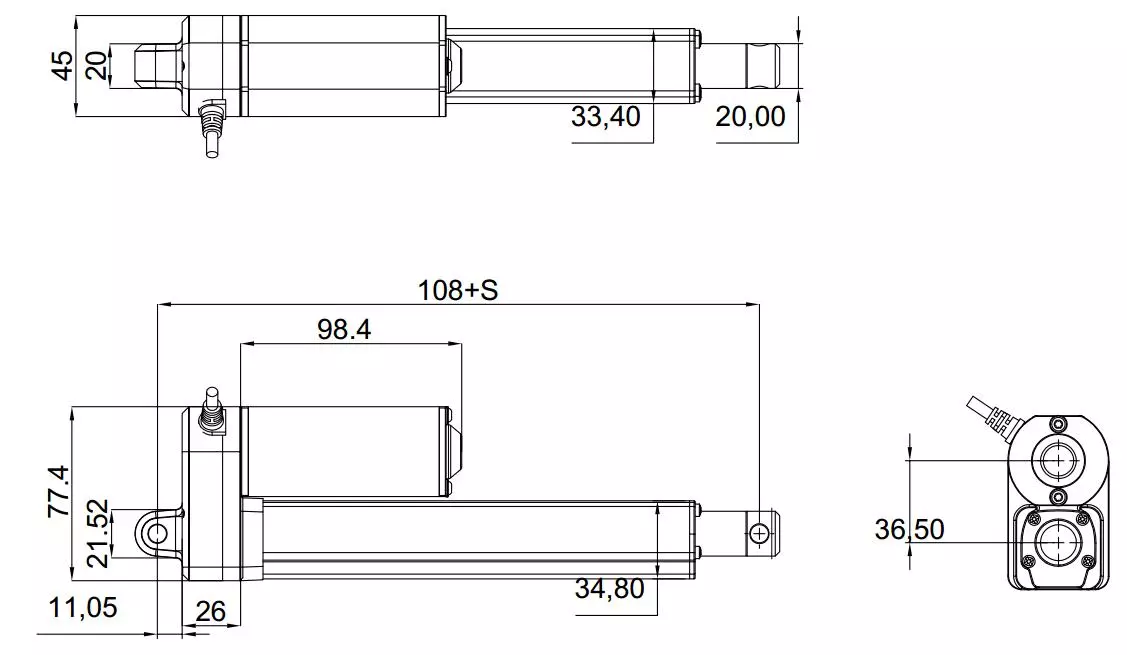

| Installation Dimensions L (MM) |
S+108
|
S+120
|
S+130
|
Standard Parameters
| Code | Rated load | Maximum Load Current（A） | No-load speed (MM/S) |
Full-load speed (MM/S) |
|||
| 12V | 24V | 36V | 48V | ||||
| A | 2000 | 4.8 | 2.5 | 1.5 | 1.0 | 8.0 | 5.0 |
| B | 1000 | 4.8 | 2.5 | 1.5 | 1.0 | 12.0 | 7.0 |
| C | 500 | 4.8 | 2.5 | 1.5 | 1.0 | 27.0 | 16.0 |
