GRA-L38
MOQ: 100 Pieces
Delivery time: 7 Day
Input voltage: 12v/24v
Max load: 3000N
Max speed at no load: 9.0mm/s
Max stroke: 600MM
IP rate: IP66
Option: Hall sensor

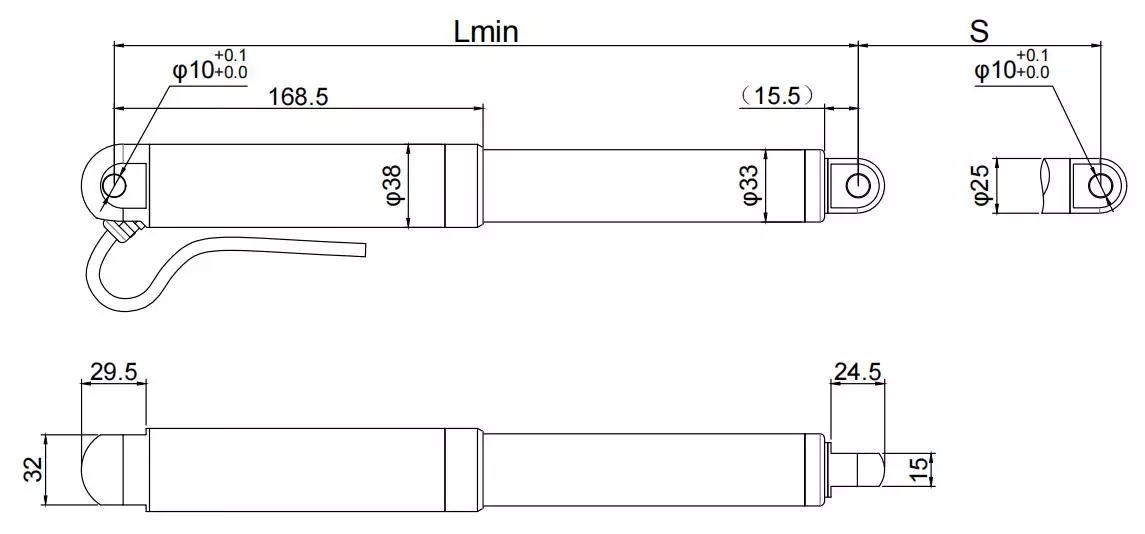

Product Details
|
S(Stroke)
|
50≤S＜300
|
301＜S≤600
|
|
Lmin
|
S+240
|
S+290
|
Technical Specifications
| Code | Rated Load (N) |
Speed （mm/s） ±10% |
Electric current （A） | ||||
| 12V | 24V | ||||||
| fully loaded | fully loaded | fully loaded | fully loaded | fully loaded | fully loaded | ||
| A | 2000 | 9 | 6 | 2 | 6.5 | 1.5 | 4.5 |
| B | 3000 | 5 | 3.5 | 2 | 6.5 | 1.5 | 4.5 |
